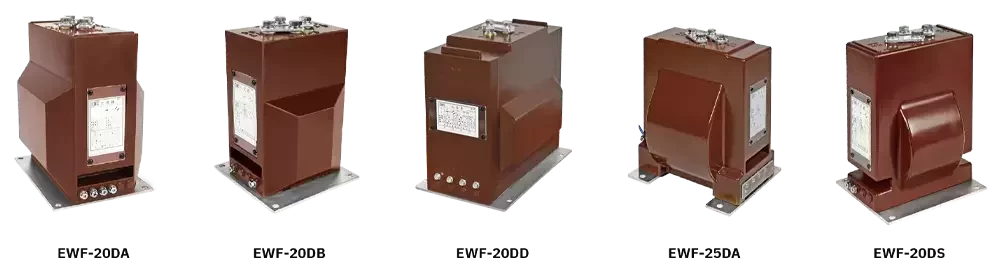

These indoor-use, epoxy-cast current transformers for 20~24 kV power systems are designed to be used with energy meters or protective relays. Available in single-core, two-core, and three-core models,these CTs can be custom-made to meet various specification requirements (e.g. burden and accuracy) and electrical standards (e.g. IEC, IEEE). Special designs and features may also be requested. Insulated with Araldite® epoxy resin, these products are characterized by a high level of moisture resistance, electrical performance, and mechanical strength.

This two-core current transformer is designed for a 20~24 kV power system and to be used in conjunction with measuring or monitoring instruments, along with protective relays. Insulated with Araldite® epoxy, this indoor-use current transformer is designed with a “U-shaped top”, which creates distance between the primary terminals and other equipment. This design increases electrical safety and shortens the necessary distance between two current transformers that are installed side-by-side, thus reducing the required width of the switchgear panel.

Intended for power companies, the MOF-24 current transformer is designed to be mounted inside the SF6 gas-insulated MOF (Metering Outfit) panel of a 25.5 kV (max.) power system. With two primary coils, the current transformer offers two current ratios while maintaining the required accuracy and burden rating at each current ratio. Insulated with Araldite® epoxy resin, this indoor current transformer offers excellent electrical performance and high reliability.

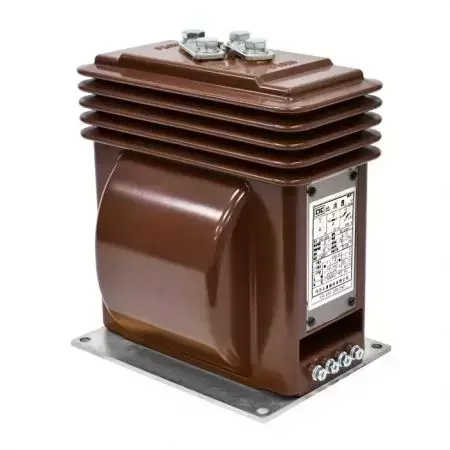

This two-core current transformer is designed for a 20~24 kV power system and is intended to be used in conjunction with measuring or monitoring instruments, and with protective relays. Insulated with Araldite® epoxy, this indoor-use current transformer is designed to have greater creepage, allowing the current transformer to be provided to regions with harsh environmental factors such as high humidity, salty air, dust, etc.

Designed to be installed in a switchgear panel of a 25 kV (max.) power system, these current transformers can be used in conjunction with measuring or monitoring instruments, or with protective relays. The insulation material for the core and the secondary coil is Araldite® epoxy resin. The window-type design facilitates installation and wiring with a busbar or insulated cables, decreasing the occurrence rate of contact point failure. With excellent insulation and a high degree of moisture resistance, the CR-20S Series current transformers can perform in locations of high humidity or moderate pollution. These lightweight and economic CTs are quick and easy to install.

With a rated accuracy and burden of 0.3 B-0.9 (IEEE), these multi-ratio bushing current transformers (bushing CTs, or BCTs) are designed for draw-out circuit breakers and to be used with measuring (or monitoring) instruments or protective relays. Able to meet the requirements of 24 kV draw-out circuit breakers made by various manufacturers, these current transformers are cast in Araldite® epoxy resin and offer excellent moisture resistance, superior electrical performance, and high mechanical properties.
